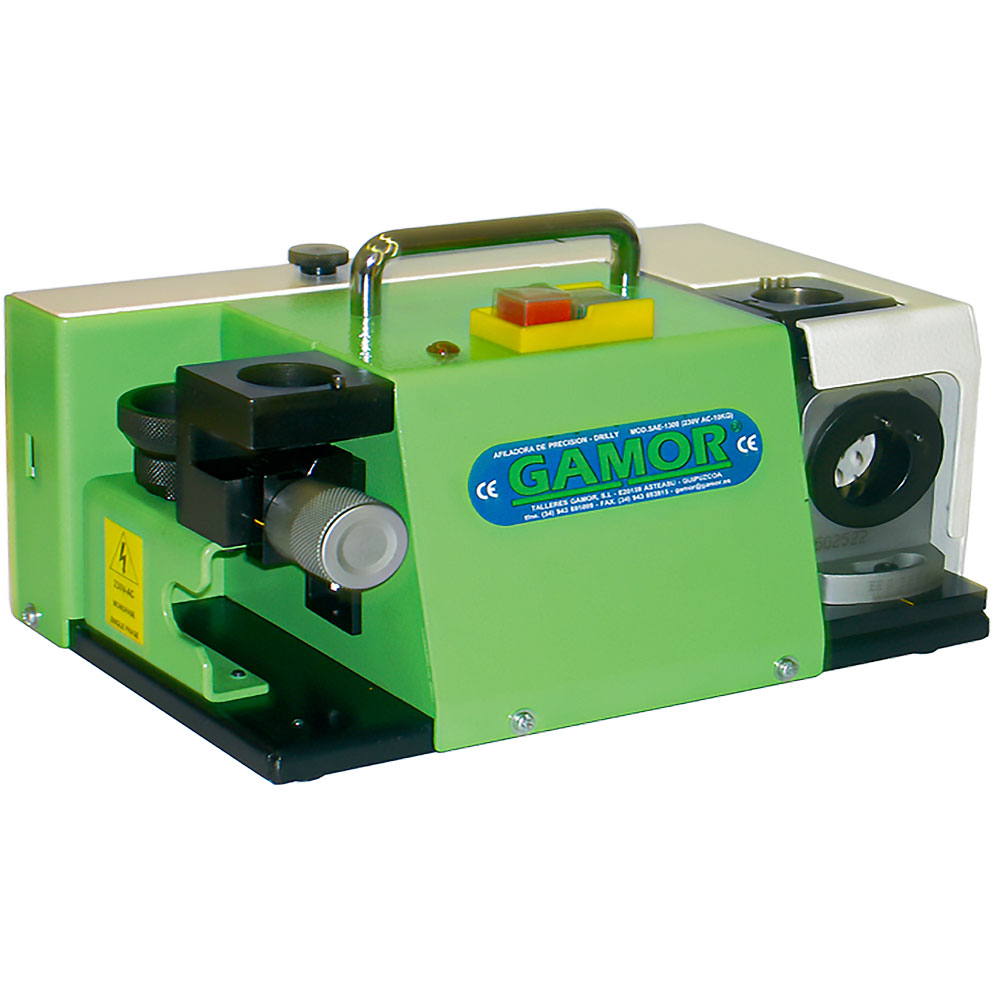

DRILL GRINDING MACHINE SAE-2500 (12-26, OPTIONAL UP TO 30)
PORTABLE DRILL GRINDER WITH VARIABLE ANGLE FOR HSS AND CARBIDE DRILLS.
Easy, fast and accurate.
Simple operation for accurate, fast and economic sharpening.
Easy to carry in order to work anywhere safely.
Long lasting diamond grinding wheel for a perfect sharpening.
Full set of ER collets inside the machine.
Technical Features
DRILL GRINDING MACHINE SAE-2500 (12-26, OPTIONAL UP TO 30)
Drill Diameter: 12-26mm (optional up to 30mm)
Variable angle: 90 ° -144 °
Speed: 5300 rpm
Motor: AC 220V
Weight: 27Kg
HSS grinding wheel: CBN-140
Carbide grinding wheel: DIA-270-1300
Collet equipment: ER-40
Dimensions: 48 x 25 x 25 cm
Standard Equipment
DRILL GRINDING MACHINE SAE-2500 (12-26, OPTIONAL UP TO 30)
Drill grinder SAE 2500 (12-26)
CBN-140 grinding wheel for HSS drill bits.
ER-40 collets: 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, and 26
Hexagonal wrench
Optional Equipment
DRILL GRINDING MACHINE SAE-2500 (12-26, OPTIONAL UP TO 30)
DIA-270 diamond grinding wheel for carbide drill bits.
ER40 collets for 27-30mm drills.
